WATER PURIFICATION

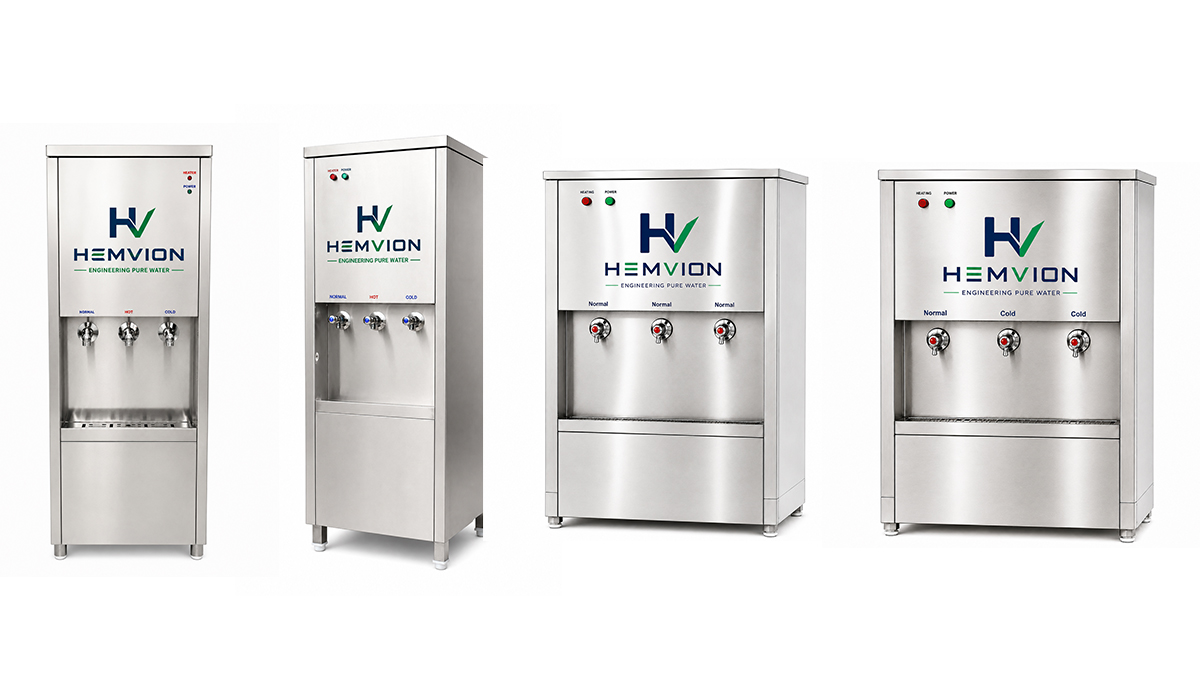

HEMVION normal, hot and cold water dispenser with inbuilt UV purification
COMPLETE PRODUCT RANGE NORMAL HOT & COLD WATER DISPENSER WITH INBUILT UV PURIFIER SYSTEM
05+
HEMVION WATER SOLUTIONS

HEMVION Stainless Steel Normal + Hot + Cold Water Dispenser with Inbuilt UV Purification System

Purification. Heating. Cooling. Dispensing. All in One System.

HEMVION Stainless Steel Normal + Hot + Cold Water Dispenser with Inbuilt UV Purification System is an integrated drinking-water solution designed for commercial, industrial and institutional applications.

The system combines UV purification, normal-water storage, hot-water storage, cold-water storage and dispensing within a robust stainless steel unit.

Instead of installing a separate purifier and dispenser, HEMVION provides a compact integrated solution that can be customized according to the number of users, storage requirement, purification capacity and dispensing requirements.

One Integrated Drinking Water Solution

UV Purification + Normal + Hot + Cold

The system integrates the essential functions required for centralized drinking-water dispensing:

Incoming Water → Filtration → UV Purification → Storage → Heating / Cooling → Dispensing

Users can conveniently access:

  • Normal Water
  • Hot Water
  • Cold Water

from the same system.

Selected for your source water

Inbuilt UV Purification System

The integrated UV purification stage provides an additional disinfection step as part of the drinking-water treatment process.

UV-based systems are suitable where the incoming water quality is appropriate for UV purification and significant dissolved-solids reduction is not required.

Where higher TDS or dissolved-solids reduction is required, HEMVION can recommend our Normal + Hot + Cold Water Dispenser with Inbuilt RO + UV Purification System instead.

Key Features

  • Inbuilt UV Purification System
  • Normal + Hot + Cold Water Dispensing
  • Premium Stainless Steel Body
  • Dedicated Normal, Hot & Cold Water Storage
  • Multiple Storage Capacity Options
  • Multiple Faucet / Dispensing Point Options
  • Thermostat-Controlled Heating
  • Thermostat-Controlled Cooling
  • Integrated Filtration System
  • Hygienic & Easy-to-Maintain Construction
  • Designed for Continuous Commercial Usage
  • Customized Configuration Based on Customer Requirement
Built for everyday use

Premium Stainless Steel Construction

Built for Demanding Environments

HEMVION systems are designed with durable stainless steel construction suitable for frequent commercial and industrial usage.

Depending on the selected model, stainless steel is used for important water-contact and structural components to provide durability, hygiene, easy maintenance and a professional appearance.

See the model-wise technical specifications below for stainless steel grades and thicknesses.

Multiple Capacity & Faucet Options

HEMVION can configure the system according to actual site requirements.

Depending on the selected model and application, options can include different:

  • Storage Capacities
  • Cooling Capacities
  • UV Capacities
  • Number of Faucets
  • Normal / Hot / Cold Storage Ratios
EXPLORE OUR RANGE

Product Variants

Select a product from the category list to view detailed information, product benefits, technical specifications and product documentation.

PRODUCT 01

MODEL H31LSNHCUV (Normal Hot & Cold) Water Cooler/Dispenser with Inbuilt UV Purifier System

The H31LSNHCUV provides purified normal, hot, and cold water from a single compact unit. Its inbuilt UV purifier helps eliminate harmful bacteria and microorganisms for safer drinking water.

The efficient heating and cooling systems maintain consistent temperatures and reliable performance. Its durable stainless-steel construction makes it ideal for offices, schools, hospitals, hotels, and canteens.

TECHNICAL SPECIFICATIONS

MODEL H31LSNHCUV (Normal Hot & Cold) Water Cooler/Dispenser with Inbuilt UV Purifier System

Storage Capacity – 33 L (14 + 5 + 14)

MODEL H31LSNHCUV
Model
H31LSNHCUV
Inbuilt UV Purifier
Dispenser Flow Rate
80 Liter’s/Hr
Storage Tank – Cold Water
14 Liter
Storage Tank – Hot Water
5 Liter
Storage Tank – Normal Water
14 Liter
No. of Faucets
3
Heater Power in Watts
1000
Cooler Power in Watts
350
Nett Weight in kg (Approx)
57
Water Purification Technology
UV
Inlet Water TDS Recommended
Good Water – Less than 300 PPM
Purification Stages
→ Fine Sediment Filter
→ Activated Carbon Filter
→ High Intensity UV Lamp
Input Water TDS Rejection
Nil
Recovery
100%
Power Supply (AC 50Hz)
180 to 240 V AC/50 Hz
Control Type
Float Switch / Float Valve
MOC – Housing
Stainless Steel 202 Grade – 0.8 mm thick
MOC – Cold Storage Tank
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Hot Storage Tank
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Normal Storage Tank
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Faucets
Brass Chromium plated
MOC – Heater Coil
Stainless Steel
MOC – Drip Tray
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Leg
Stainless Steel 304 Grade – 2 mm thick
MOC – Rear Cover
Stainless Steel 202 Grade – 0.8 mm thick
Heater Temperature Range
40 to 80°C (Thermostat Adjustable)
Cooling Temperature Range
16 to 22°C (Thermostat Adjustable)
Condenser Tubing
Grooved Copper
Insulation of Cooling Tank
Polyurethane Foam – 50mm thick
Compressor Make
Emerson / Tecumseh
Compressor Refrigerant
R-134a
Dimension – H31LSNHCUV
L-370mm, B-430mm, H-1350mm
PRODUCT DOCUMENTATION MODEL H31LSNHCUV (Normal Hot & Cold) Water Cooler/Dispenser with Inbuilt UV Purifier System Complete product and technical details
PRODUCT 02

MODEL H45LSNHCUV(Normal Hot & Cold)Water Cooler/Dispenser with Inbuilt UV Purifier System.

The H45LSNHCUV provides purified normal, hot, and cold water from a single convenient unit. Its inbuilt UV purifier helps eliminate harmful bacteria and microorganisms for safer drinking water.

The efficient heating and cooling systems maintain consistent temperatures and reliable performance. Its durable stainless-steel construction makes it ideal for offices, schools, hospitals, hotels, and canteens.

TECHNICAL SPECIFICATIONS

MODEL H45LSNHCUV (Normal Hot & Cold) Water Cooler/Dispenser with Inbuilt UV Purifier System

Storage Capacity – 45 L (20 + 5 + 20)

MODEL H45LSNHCUV
Model
H45LSNHCUV – Inbuilt UV Purifier
Dispenser Flow Rate
110 Liter’s/Hr
Storage Tank – Cold Water
20 Liter
Storage Tank – Hot Water
5 Liter
Storage Tank – Normal Water
20 Liter
No. of Faucets
3
Heater Power in Watts
1000
Cooler Power in Watts
350
Nett Weight in kg (Approx)
57
Water Purification Technology
UV
Purification Capacity
50 Liter’s/Hr
Inlet Water TDS Recommended
Good Water – Less than 300 PPM
Purification Stages
→ Fine Sediment Filter
→ Activated Carbon Filter
→ High Intensity UV Lamp
Input Water TDS Rejection
Nil
Recovery
100%
Power Supply (AC 50Hz)
180 to 240 V AC/50 Hz
Control Type
Float Switch
MOC – Housing
Stainless Steel 202 Grade – 0.8 mm thick
MOC – Cold Storage Tank
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Hot Storage Tank
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Normal Storage Tank
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Faucets
Brass Chromium plated
MOC – Heater Coil
Stainless Steel
MOC – Drip Tray
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Leg
Stainless Steel 304 Grade – 2 mm thick
MOC – Rear Cover
Stainless Steel 202 Grade – 0.8 mm thick
Frame Structure
MS Angle – 3MM Thickness
Heater Temperature Range
40 to 80°C (Thermostat Adjustable)
Cooling Temperature Range
16 to 22°C (Thermostat Adjustable)
Condenser Tubing
Grooved Copper
Insulation of Cooling Tank
Polyurethane Foam – 50mm thick
Compressor Make
Emerson / Tecumseh
Compressor Refrigerant
R-134a
Dimension – H45LSNHCUV
L-455mm, B-500mm, H-1350mm
PRODUCT DOCUMENTATION MODEL H45LSNHCUV(Normal Hot & Cold)Water Cooler/Dispenser with Inbuilt UV Purifier System. Complete product and technical specifications
PRODUCT 03

MODEL H85LSNHCUV (Normal Hot & Cold) Water Cooler/ Dispenser with Inbuilt UV Purifier System

The H85LSNHCUV provides purified normal, hot, and cold water from a single high-capacity unit. Its inbuilt UV purifier helps eliminate harmful bacteria and microorganisms for safer drinking water.

The powerful heating and cooling systems maintain consistent temperatures and reliable performance. Its durable stainless-steel construction makes it ideal for factories, hospitals, schools, hotels, and canteens.

TECHNICAL SPECIFICATIONS

MODEL H85LSNHCUV (Normal Hot & Cold) Water Cooler/Dispenser with Inbuilt UV Purifier System

Storage Capacity – 85 Liter’s (40 + 5 + 40)

MODEL H85LSNHCUV
Model
H85LSNHCUV – Inbuilt UV Purifier
Dispenser Flow Rate
150 Liter’s/Hr
Storage Tank – Cold Water
40 Liter
Storage Tank – Hot Water
5 Liter
Storage Tank – Normal Water
40 Liter
No. of Faucets
3
Heater Power in Watts
1000
Cooler Power in Watts
500
Nett Weight in kg (Approx)
84
Water Purification Technology
UV
Inlet Water TDS Recommended
Good Water – Less than 300 PPM
Purification Stages
→ Fine Sediment Filter
→ Activated Carbon Filter
→ High Intensity UV Lamp
Input Water TDS Rejection
NA
Recovery
100%
Power Supply (AC 50Hz)
180 to 240 V AC/50 Hz
Control Type
Float Switch / Float Valve
MOC – Housing
Stainless Steel 202 Grade – 0.8 mm thick
MOC – Cold Storage Tank
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Hot Storage Tank
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Normal Storage Tank
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Faucets
Brass Chromium plated
MOC – Heater Coil
Stainless Steel
MOC – Drip Tray
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Leg
Stainless Steel 304 Grade – 2mm thick
MOC – Rear Cover
Stainless Steel 202 Grade – 0.8 mm thick
MOC – Frame Structure
MS Angle – 3mm Thickness
Heater Temperature Range
40 to 80°C (Thermostat Adjustable)
Heater Protection
Provided
Heating Technology
Double Thermostat Technology
Proper Steam Vent
Provided
Cooling Temperature Range
16 to 22°C (Thermostat Adjustable)
Condenser Tubing
Grooved Copper
Insulation of Cooling Tank
Polyurethane Foam – 50mm thick
Compressor Make
Emerson / Tecumseh
Compressor Refrigerant
R-134a
Dimension – H85LSNHCUV
L-530mm, B-560mm, H-1500mm
PRODUCT DOCUMENTATION MODEL H85LSNHCUV (Normal Hot & Cold) Water Cooler/ Dispenser with Inbuilt UV Purifier System Complete product and technical specifications
PRODUCT 04

MODEL H105LSNHCUV (Normal Hot & Cold) Water Cooler with Inbuilt UV Purifier System

The H105LSNHCUV delivers purified normal, hot, and cold water from a single high-capacity unit. Its inbuilt UV purification system helps eliminate harmful bacteria and microorganisms for safer drinking water.

The powerful heating and cooling systems ensure consistent temperatures and reliable performance. Its durable stainless-steel construction is ideal for factories, hospitals, schools, hotels, and canteens.

TECHNICAL SPECIFICATIONS

MODEL H105LSNHCUV (Normal Hot & Cold) Water Cooler with Inbuilt UV Purifier System

Storage Capacity – 105 L (50 + 5 + 50)

MODEL H105LSNHCUV
Model
H105LSNHCUV – Inbuilt UV Purifier
Dispenser Flow Rate
250 Liter’s/Hr
Storage Tank – Cold Water
50 Liter
Storage Tank – Hot Water
5 Liter
Storage Tank – Normal Water
50 Liter
No. of Faucets
5
Heater Power in Watts
1000
Cooler Power in Watts
750
Nett Weight in kg (Approx)
84
Water Purification Technology
UV
Purification Capacity
50 Liter’s/Hr
Inlet Water TDS Recommended
Good Water – Less than 300 PPM
Purification Stages
→ Fine Sediment Filter
→ Activated Carbon Filter
→ High Intensity UV Lamp
Input Water TDS Rejection
NA
Recovery
100%
Power Supply (AC 50Hz)
180 to 240 V AC/50 Hz
Control Type
Float Switch / Float Valve
MOC – Housing
Stainless Steel 202 Grade – 0.8 mm thick
MOC – Cold Storage Tank
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Hot Storage Tank
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Normal Storage Tank
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Faucets
Brass Chromium plated
MOC – Heater Coil
Stainless Steel
MOC – Drip Tray
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Leg
Stainless Steel 304 Grade – 2mm thick
MOC – Rear Cover
Stainless Steel 202 Grade – 0.8 mm thick
MOC – Frame Structure
MS Angle – 3mm Thickness
Heater Temperature Range
40 to 80°C (Thermostat Adjustable)
Heater Protection
Provided
Heating Technology
Double Thermostat Technology
Proper Steam Vent
Provided
Cooling Temperature Range
16 to 22°C (Thermostat Adjustable)
Condenser Tubing
Grooved Copper
Insulation of Cooling Tank
Polyurethane Foam – 50mm thick
Compressor Make
Emerson / Tecumseh
Compressor Refrigerant
R-134a
Dimension – H105LSNHCRO
L-600mm, B-700mm, H-1500mm
PRODUCT DOCUMENTATION MODEL H105LSNHCUV (Normal Hot & Cold) Water Cooler with Inbuilt UV Purifier System Complete product and technical specifications
PRODUCT 05

MODEL H125LSNHCUV (Normal Hot & Cold) Water Cooler Cum UV Purifier System

The H125LSNHCUV provides purified normal, hot, and cold water from a single high-capacity system. Its inbuilt UV purifier helps eliminate harmful bacteria and microorganisms for safer drinking water.

The powerful heating and cooling systems ensure consistent temperatures and reliable performance. Its robust stainless-steel construction is ideal for factories, hospitals, institutions, hotels, and large canteens.

TECHNICAL SPECIFICATIONS

MODEL H125LSNHCUV (Normal Hot & Cold) Water Cooler Cum UV Purifier System

Storage Capacity – 125 L (60 + 5 + 60)

MODEL H125LSNHCUV
Model
H125LSNHCUV – Inbuilt UV Purifier
Dispenser Flow Rate
300 Liter’s/Hr
Storage Tank – Cold Water
60 Liter
Cooling Capacity
60 Liter/Hr
Storage Tank – Hot Water
5 Liter
Storage Tank – Normal Water
60 Liter
No. of Faucets
3 or 4 or 7
Heater Power in Watts
1000
Cooler Power in Watts
750
Nett Weight in kg (Approx)
89
Water Purification Technology
UV
Purification Capacity
50 Liter/Hr
Inlet Water TDS Recommended
Good Water – Less than 300 PPM
Purification Stages
→ Fine Sediment Filter
→ Activated Carbon Filter
→ High Intensity UV Lamp
Input Water TDS Rejection
NA
Recovery
100%
Power Supply (AC 50Hz)
180 to 240 V AC/50 Hz
Control Type
Float Switch / Float Valve
MOC – Housing
Stainless Steel 202 Grade – 0.8 mm thick
MOC – Cold Storage Tank
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Hot Storage Tank
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Normal Storage Tank
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Faucets
Brass Chromium plated
MOC – Heater Coil
Stainless Steel
MOC – Drip Tray
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Leg
Stainless Steel 304 Grade – 2mm thick
MOC – Rear Cover
Stainless Steel 202 Grade – 0.8 mm thick
MOC – Frame Structure
MS Angle – 3mm Thickness
Heater Temperature Range
40 to 80°C (Thermostat Adjustable)
Heater Protection
Provided
Heating Technology
Double Thermostat Technology
Proper Steam Vent
Provided
Cooling Temperature Range
16 to 22°C (Thermostat Adjustable)
Condenser Tubing
Grooved Copper
Insulation of Cooling Tank
Polyurethane Foam – 50mm thick
Compressor Make
Emerson / Tecumseh
Compressor Refrigerant
R-134a
Dimension – H125LSNHCUV
L-600mm, B-800mm, H-1475mm
PRODUCT DOCUMENTATION MODEL H125LSNHCUV (Normal Hot & Cold) Water Cooler Cum UV Purifier System Complete product and technical specifications
Configured for your facility

Customization Is Our Strength

Your Requirement. Our Engineering Solution.

Every facility has a different drinking-water requirement.

Before recommending a system, HEMVION considers:

  • Number of Users
  • Incoming Water Quality
  • Daily Water Consumption
  • Required Storage Capacity
  • Required Cooling Capacity
  • Hot Water Requirement
  • UV Purification Capacity
  • Number of Dispensing Points
  • Available Installation Space

Based on these parameters, our team can recommend and configure a suitable integrated system.

Applications

HEMVION Normal + Hot + Cold Water Dispensers with Inbuilt UV Purification are suitable for:

  • Manufacturing Industries
  • Factories
  • Corporate Offices
  • IT Companies
  • Educational Institutions
  • Hospitals
  • Hotels
  • Hostels
  • Commercial Establishments
  • Large Workforce Facilities

Why Choose an Integrated System?

Instead of using separate equipment for purification, cooling, heating and dispensing, an integrated HEMVION system brings the required functions together.

Purification

UV-based water treatment.

Storage

Dedicated storage according to the selected configuration.

Cooling

Chilled drinking water for everyday usage.

Heating

Convenient hot-water availability.

Dispensing

Multiple dispensing options depending on the application.

Why HEMVION?

  • 23+ Years of Industry Experience
  • Customized Engineering Solutions
  • Premium Stainless Steel Construction
  • Integrated Purification + Dispensing Solutions
  • Commercial & Industrial Expertise
  • Application-Based System Selection

Looking for a Complete UV Purification & Water Dispensing Solution?

Tell us your number of users, incoming water quality, required storage capacity and dispensing requirement.

HEMVION will help you configure the appropriate system for your application.

Discuss Your Requirement
◉ Enquire
on WhatsApp
