Home › Products › NORMAL HOT & COLD WATER DISPENSER WITH INBUILT ROUV PURIFIER SYSTEM
WATER PURIFICATION

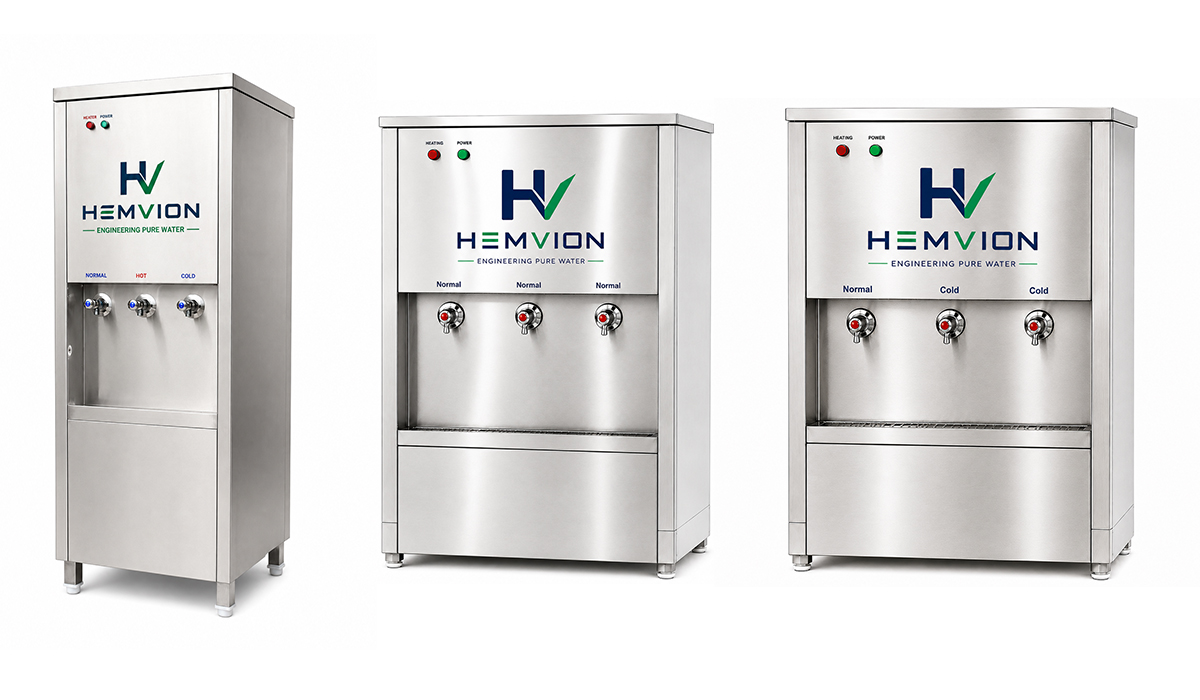

HEMVION normal, hot and cold water dispenser with inbuilt RO + UV purification
COMPLETE PRODUCT RANGE NORMAL HOT & COLD WATER DISPENSER WITH INBUILT ROUV PURIFIER SYSTEM
05+
HEMVION WATER SOLUTIONS

HEMVION Stainless Steel Normal + Hot + Cold Water Dispenser with Inbuilt RO + UV Purification System

Purification. Storage. Cooling. Heating. Dispensing. One Complete System.

HEMVION Stainless Steel Normal + Hot + Cold Water Dispenser with Inbuilt RO + UV Purification System is designed as a complete drinking-water solution for commercial, industrial and institutional applications.

The system combines RO + UV purification, purified-water storage, cooling, heating and Normal / Hot / Cold dispensing within an integrated stainless steel unit.

Rather than installing a separate RO purifier, water cooler and hot-water dispenser, HEMVION can engineer these functions into one customized system based on the customer's water quality, number of users and site requirements.

Complete Integrated Water Solution

RO + UV Purification → Storage → Cooling / Heating → Dispensing

The system is designed to handle the drinking-water process within one integrated configuration:

Incoming Water → Pre-Filtration → RO Purification → UV Purification → Storage → Heating / Cooling → Dispensing

Users can conveniently access:

  • Normal Water
  • Hot Water
  • Cold Water

from the same system.

Application-based selection

Advanced RO + UV Purification

Designed According to Your Source Water

The Reverse Osmosis (RO) stage helps reduce dissolved salts and other dissolved impurities, while the UV purification stage provides an additional disinfection barrier as part of the treatment process.

However, HEMVION does not recommend an RO system simply based on the number of users.

The appropriate purification configuration should be selected after considering:

  • Incoming Water Quality
  • TDS Level
  • Required Purified-Water Output
  • Daily Consumption
  • Application

This allows the system to be configured according to the actual water condition.

Key Features

  • Inbuilt RO + UV Purification System
  • Normal + Hot + Cold Water Dispensing
  • Premium Stainless Steel Body
  • Integrated Pre-Filtration
  • Dedicated Water Storage Sections
  • Multiple Storage Capacity Options
  • Multiple RO Purification Capacity Options
  • Multiple Faucet / Dispensing Point Options
  • Thermostat-Controlled Cooling
  • Thermostat-Controlled Heating
  • Automatic Water-Level Control Options
  • Hygienic & Service-Friendly Construction
  • Designed for Continuous Commercial Usage
  • Customized Configuration Based on Customer Requirement

One System Instead of Multiple Machines

Instead of:

  • Separate RO Purifier
  • Separate Storage Tank
  • Separate Water Cooler
  • Separate Hot Water Dispenser

HEMVION can provide:

One Integrated System

  1. RO + UV Purification
  2. Purified Water Storage
  3. Cooling + Heating
  4. Normal + Hot + Cold Dispensing

Premium Stainless Steel Construction

Designed for Commercial & Industrial Environments

HEMVION systems are built using stainless steel construction appropriate to the selected model and application.

The design provides:

  • Durability
  • Hygiene
  • Easy Maintenance
  • Professional Appearance
  • Long-Term Commercial Usage

See the model-wise technical specifications for exact stainless steel grades, material thicknesses and component specifications.

Multiple Capacity Options

Different facilities have different water-consumption patterns.

HEMVION can configure the system with suitable:

  • RO Purification Capacity
  • Normal Water Storage
  • Hot Water Storage
  • Cold Water Storage
  • Cooling Capacity
  • Heating Capacity
  • Number of Dispensing Points

This allows the system to be designed around the facility rather than forcing the customer to select a fixed standard configuration.

EXPLORE OUR RANGE

Product Variants

Select a product from the category list to view detailed information, product benefits, technical specifications and product documentation.

PRODUCT 01

MODEL H45LSNHCRO (Normal Hot & Cold)Water Cooler/Dispenser with Inbuilt RO or UV Purifier System.

The H45LSNHCRO provides purified normal, hot, and cold water from a single convenient unit. Its inbuilt RO or UV purification system helps remove impurities and harmful microorganisms from the water.

The efficient heating and cooling systems maintain consistent temperatures for reliable performance. Its durable stainless-steel construction makes it ideal for offices, schools, hospitals, hotels, factories, and canteens.

TECHNICAL SPECIFICATIONS

MODEL H45LSNHCRO (Normal Hot & Cold) Water Cooler/Dispenser with Inbuilt RO or UV Purifier System

Storage Capacity – 45 L (20 + 5 + 20)

MODEL H45LSNHCRO
Model
H45LSNHCRO
Inbuilt RO Purifier
Dispenser Flow Rate
110 Liter’s/Hr
Storage Tank – Cold Water
20 Liter
Storage Tank – Hot Water
5 Liter
Storage Tank – Normal Water
20 Liter
No. of Faucets
3
Heater Power in Watts
1000
Cooler Power in Watts
350
Nett Weight in kg (Approx)
58
Water Purification Technology
RO
Purification Capacity
25 Liter/Hr
Inlet Water TDS Recommended
Borewell Water – 300 PPM to 1800 PPM (Max)
Purification Stages
→ Fine Sediment Filter
→ Activated Carbon Filter
→ RO Membrane
→ Post Carbon Filter
→ UV (Optional)
Input Water TDS Rejection
90%
Recovery
30–40%
Power Supply (AC 50Hz)
180 to 240 V AC/50 Hz
Control Type
Float Switch
MOC – Housing
Stainless Steel 202 Grade – 0.8 mm thick
MOC – Cold Storage Tank
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Hot Storage Tank
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Normal Storage Tank
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Faucets
Brass Chromium plated
MOC – Heater Coil
Stainless Steel
MOC – Drip Tray
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Leg
Stainless Steel 304 Grade – 2 mm thick
MOC – Rear Cover
Stainless Steel 202 Grade – 0.8 mm thick
Frame Structure
MS Angle – 3MM Thickness
Heater Temperature Range
40 to 80°C (Thermostat Adjustable)
Cooling Temperature Range
16 to 22°C (Thermostat Adjustable)
Condenser Tubing
Grooved Copper
Insulation of Cooling Tank
Polyurethane Foam – 50 mm thick
Compressor Make
Emerson / Tecumseh
Compressor Refrigerant
R-134a
Dimension – H45LSNHCRO
L-455mm, B-500mm, H-1350mm
PRODUCT DOCUMENTATION MODEL H45LSNHCRO (Normal Hot & Cold)Water Cooler/Dispenser with Inbuilt RO or UV Purifier System. Complete product and technical details
PRODUCT 02

MODEL H85LSNHCRO50 (Normal Hot & Cold) Water Cooler/ Dispenser with Inbuilt RO Purifier System

The H85LSNHCRO50 provides purified normal, hot, and cold water from a single high-capacity unit. Its inbuilt 50 LPH RO purification system effectively removes dissolved salts, impurities, and contaminants.

The powerful heating and cooling systems maintain consistent temperatures for reliable performance. Its durable stainless-steel construction is ideal for factories, hospitals, schools, hotels, and large canteens.

TECHNICAL SPECIFICATIONS

MODEL H85LSNHCRO50 (Normal Hot & Cold) Water Cooler / Dispenser with Inbuilt RO Purifier System

Storage Capacity – 85 Liter’s (40 + 5 + 40)

MODEL H85LSNHCRO50
Model
H85LSNHCRO
Inbuilt RO Purifier
Dispenser Flow Rate
150 Liter’s/Hr
Storage Tank – Cold Water
40 Liter
Storage Tank – Hot Water
5 Liter
Storage Tank – Normal Water
40 Liter
No. of Faucets
3
Heater Power in Watts
1000
Cooler Power in Watts
500
Nett Weight in kg (Approx)
84
Water Purification Technology
RO
Purification Capacity
50 LPH
Inlet Water TDS Recommended
Borewell Water – 300 PPM to 1800 PPM (Max)
Purification Stages
→ Fine Sediment Filter
→ Activated Carbon Filter
→ RO Membrane – 4 No’s
→ Post Carbon Filter
→ UV (Optional)
Input Water TDS Rejection
90%
Recovery
30–40%
RO Booster Pump
150 GPD – 2 No’s
Power Supply (AC 50Hz)
180 to 240 VAC / 50 Hz
Control Type
Float Switch / Float Valve
MOC – Housing
Stainless Steel 202 Grade – 0.8 mm thick
MOC – Cold Storage Tank
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Hot Storage Tank
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Normal Storage Tank
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Faucets
Brass Chromium plated
MOC – Heater Coil
Stainless Steel
MOC – Drip Tray
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Leg
Stainless Steel 304 Grade – 2 mm thick
MOC – Rear Cover
Stainless Steel 202 Grade – 0.8 mm thick
MOC – Frame Structure
MS Angle – 3 mm Thickness
Heater Temperature Range
40 to 80°C (Thermostat Adjustable)
Heater Protection
Provided
Heating Technology
Double Thermostat Technology
Proper Steam Vent
Provided
Cooling Temperature Range
16 to 22°C (Thermostat Adjustable)
Condenser Tubing
Grooved Copper
Insulation of Cooling Tank
Polyurethane Foam – 50 mm thick
Compressor Make
Emerson / Tecumseh
Compressor Refrigerant
R-134a
Dimension – H85LSNHCRO50
L-530mm, B-560mm, H-1500mm
PRODUCT DOCUMENTATION MODEL H85LSNHCRO50 (Normal Hot & Cold) Water Cooler/ Dispenser with Inbuilt RO Purifier System Complete product and technical specifications
PRODUCT 03

MODEL H105LSNHCRO (Normal Hot & Cold) Water Cooler with Inbuilt RO/UV Purifier System Available with Inbuilt RO+UV Purification System 50Liter’/Hr and 100Liter’s/Hr

The H105LSNHCRO provides purified normal, hot, and cold water from one high-capacity unit. Its integrated RO+UV system removes dissolved impurities and controls harmful microorganisms for safer drinking water.

It is available in 50 LPH and 100 LPH purification capacities to suit different usage requirements. Its durable stainless-steel construction is ideal for factories, hospitals, institutions, hotels, and large canteens.

TECHNICAL SPECIFICATIONS

MODEL H105LSNHCRO (Normal Hot & Cold) Water Cooler with Inbuilt RO/UV Purifier System

Available with Inbuilt RO+UV Purification System 50 Liter/Hr and 100 Liter/Hr

Storage Capacity – 105 L (50 + 5 + 50)

MODEL H105LSNHCRO
Model
H105LSNHCRO
Inbuilt RO Purifier
Dispenser Flow Rate
250 Liter’s/Hr
Storage Tank – Cold Water
50 Liter
Storage Tank – Hot Water
5 Liter
Storage Tank – Normal Water
50 Liter
No. of Faucets
3
Heater Power in Watts
1000
Cooler Power in Watts
750
Nett Weight in kg (Approx)
89
Water Purification Technology
RO
Purification Capacity
50 Liter’s/Hr or 100 Liter’s/Hr
Inlet Water TDS Recommended
Borewell Water – 300 PPM to 1800 PPM (Max)
Purification Stages
→ Fine Sediment Filter
→ Activated Carbon Filter
→ RO Membrane
→ Post Carbon Filter
→ UV (Optional)
Input Water TDS Rejection
90%
Recovery
30–40%
Power Supply (AC 50Hz)
180 to 240 V AC / 50 Hz
Control Type
Float Switch / Float Valve
MOC – Housing
Stainless Steel 202 Grade – 0.8 mm thick
MOC – Cold Storage Tank
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Hot Storage Tank
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Normal Storage Tank
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Faucets
Brass Chromium plated
MOC – Heater Coil
Stainless Steel
MOC – Drip Tray
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Leg
Stainless Steel 304 Grade – 2 mm thick
MOC – Rear Cover
Stainless Steel 202 Grade – 0.8 mm thick
MOC – Frame Structure
MS Angle – 3 mm Thickness
Heater Temperature Range
40 to 80°C (Thermostat Adjustable)
Heater Protection
Provided
Heating Technology
Double Thermostat Technology
Proper Steam Vent
Provided
Cooling Temperature Range
16 to 22°C (Thermostat Adjustable)
Condenser Tubing
Grooved Copper
Insulation of Cooling Tank
Polyurethane Foam – 50 mm thick
Compressor Make
Emerson / Tecumseh
Compressor Refrigerant
R-134a
Dimension – H105LSNHCRO
L-600mm, B-700mm, H-1500mm
PRODUCT DOCUMENTATION MODEL H105LSNHCRO (Normal Hot & Cold) Water Cooler with Inbuilt RO/UV Purifier System Available with Inbuilt RO+UV Purification System 50Liter’/Hr and 100Liter’s/Hr Complete product and technical specifications
PRODUCT 04

MODEL H125LSNHCRO (Normal Hot & Cold) Water Cooler Cum RO+UV Purifier System

The H125LSNHCRO delivers purified normal, hot, and cold water from a single high-capacity unit. Its integrated RO+UV system removes dissolved impurities and helps eliminate harmful microorganisms.

The powerful heating and cooling systems maintain consistent temperatures for reliable performance. Its robust stainless-steel construction is ideal for factories, hospitals, institutions, hotels, and large canteens.

TECHNICAL SPECIFICATIONS

MODEL H125LSNHCRO (Normal Hot & Cold) Water Cooler Cum RO+UV Purifier System

Storage Capacity – 125 L (60 + 5 + 60)

MODEL H125LSNHCRO
MODEL
J300NHCRO
Inbuilt RO Purifier
Dispenser Flow Rate
300 Liter’s/Hr
Storage Tank – Cold Water
60 Liter
Cooling Capacity
60 Liter’s/Hr
Storage Tank – Hot Water
5 Liter
Storage Tank – Normal Water
60 Liter
No. of Faucets
3 or 4 or 7
Heater Power in Watts
1000
Cooler Power in Watts
750
Nett Weight in kg (Approx)
94
Water Purification Technology
RO
Purification Capacity
50 or 100 Liter’s/Hr
Inlet Water TDS Recommended
Borewell Water – 300 PPM to 1800 PPM (Max)
Purification Stages
→ Fine Sediment Filter
→ Activated Carbon Filter
→ RO Membrane
→ Post Carbon Filter
→ UV (Optional)
Input Water TDS Rejection
90%
Recovery
30–40%
Power Supply (AC 50Hz)
180 to 240 V AC / 50 Hz
Control Type
Float Switch / Float Valve
MOC – Housing
Stainless Steel 202 Grade – 0.8 mm thick
MOC – Cold Storage Tank
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Hot Storage Tank
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Normal Storage Tank
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Faucets
Brass Chromium plated
MOC – Heater Coil
Stainless Steel
MOC – Drip Tray
Stainless Steel 304 Grade – 0.8 mm thick
MOC – Leg
Stainless Steel 304 Grade – 2 mm thick
MOC – Rear Cover
Stainless Steel 202 Grade – 0.8 mm thick
MOC – Frame Structure
MS Angle – 3 mm Thickness
Heater Temperature Range
40 to 80°C (Thermostat Adjustable)
Heater Protection
Provided
Heating Technology
Double Thermostat Technology
Proper Steam Vent
Provided
Cooling Temperature Range
16 to 22°C (Thermostat Adjustable)
Condenser Tubing
Grooved Copper
Insulation of Cooling Tank
Polyurethane Foam – 50 mm thick
Compressor Make
Emerson / Tecumseh
Compressor Refrigerant
R-134a
Dimension – H125LSNHCRO
L-600mm, B-800mm, H-1475mm
PRODUCT DOCUMENTATION MODEL H125LSNHCRO (Normal Hot & Cold) Water Cooler Cum RO+UV Purifier System Complete product and technical specifications
Configured for your facility

Customization Is Our Strength

Your Water. Your Requirement. Our Engineering Solution.

Before recommending an RO + UV dispenser system, our team considers:

  • Incoming Water TDS & Quality
  • Number of Users
  • Daily Drinking-Water Consumption
  • Peak-Time Consumption
  • Required RO Capacity
  • Storage Requirement
  • Cooling Requirement
  • Hot-Water Requirement
  • Number of Dispensing Points
  • Available Installation Space

Based on these parameters, HEMVION can recommend an appropriate configuration for your application.

Suitable Applications

Ideal for:

  • Manufacturing Industries
  • Factories
  • Corporate Offices
  • IT Companies
  • Educational Institutions
  • Hospitals & Healthcare Facilities
  • Hotels & Resorts
  • Hostels
  • Commercial Buildings
  • Industrial Facilities

Why HEMVION?

  • 23+ Years of Industry Experience
  • Customized Engineering Solutions
  • Integrated RO + UV + Dispenser Systems
  • Premium Stainless Steel Construction
  • Commercial & Industrial Expertise
  • Multiple Capacity & Dispensing Options
  • Application-Based System Selection

Need a Complete RO + UV Drinking-Water Solution?

Don't select the system based only on tank capacity.

Share your:

  • Water Test Report / TDS
  • Number of Users
  • Daily Water Requirement
  • Normal / Hot / Cold Requirement
  • Number of Dispensing Points

HEMVION will help you identify the appropriate configuration for your application.

Send Your Requirement Send Water Test Report on WhatsApp
◉ Enquire
on WhatsApp
